Dr. Hesekiel’s Original Spiegel-Reflex-Camera, c. 1894

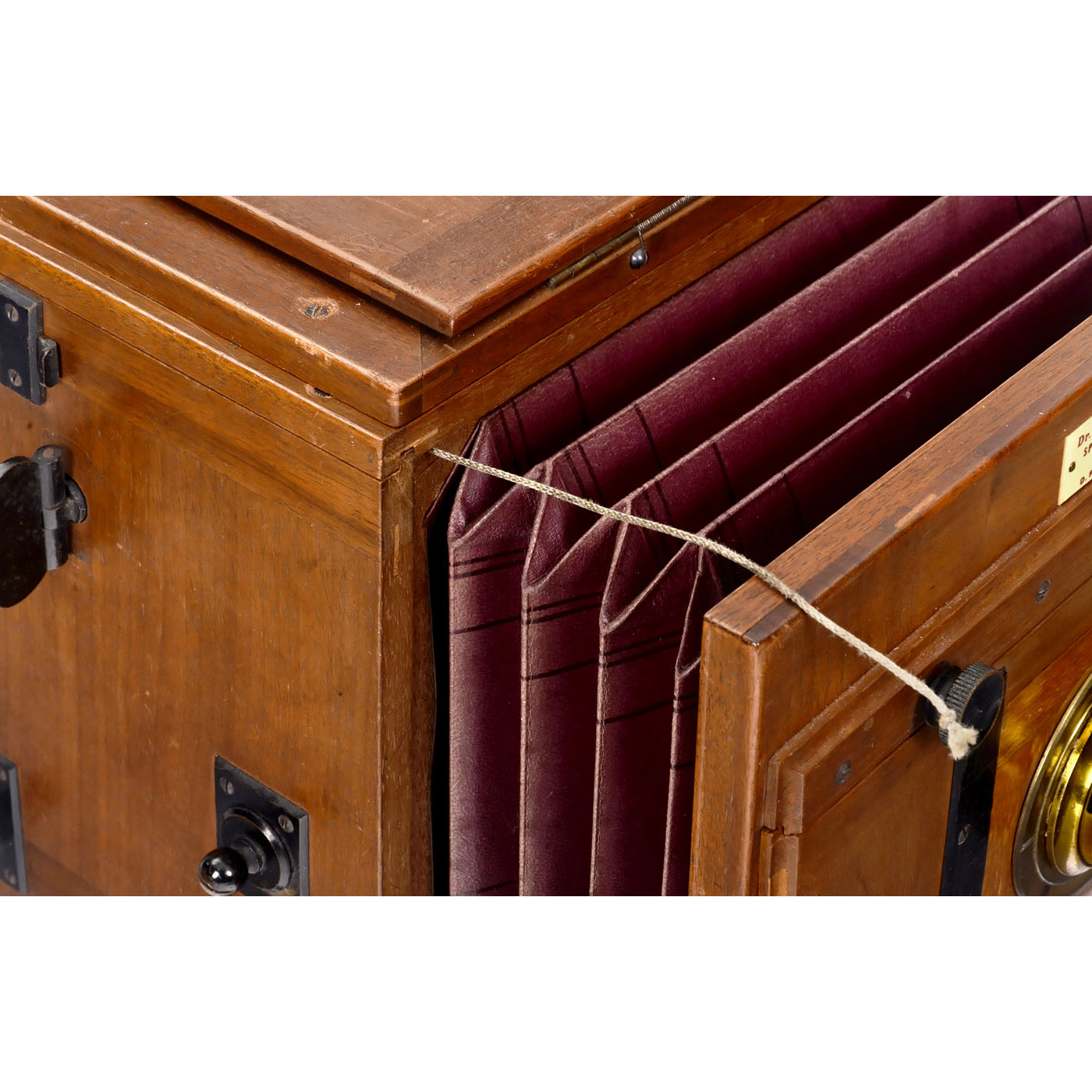

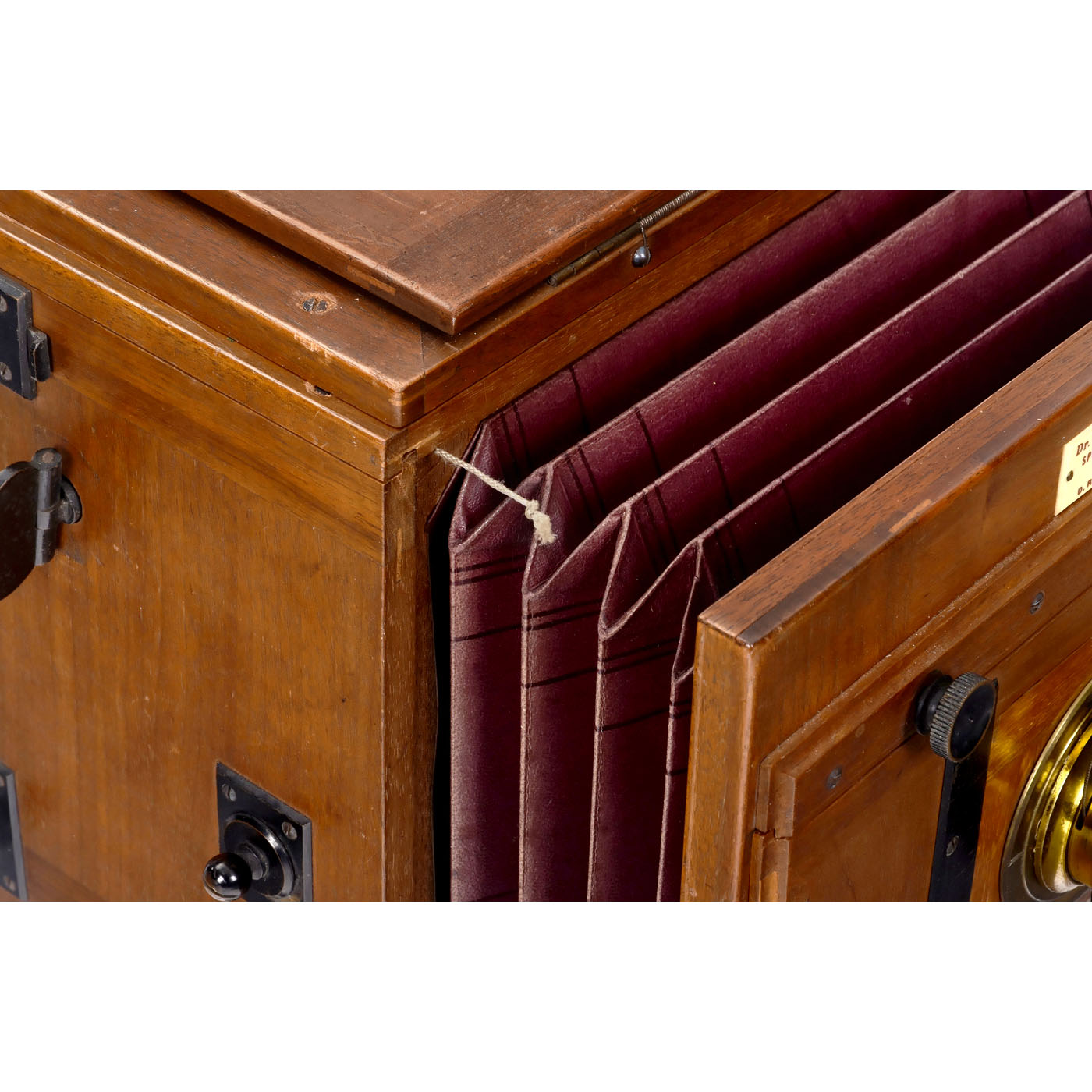

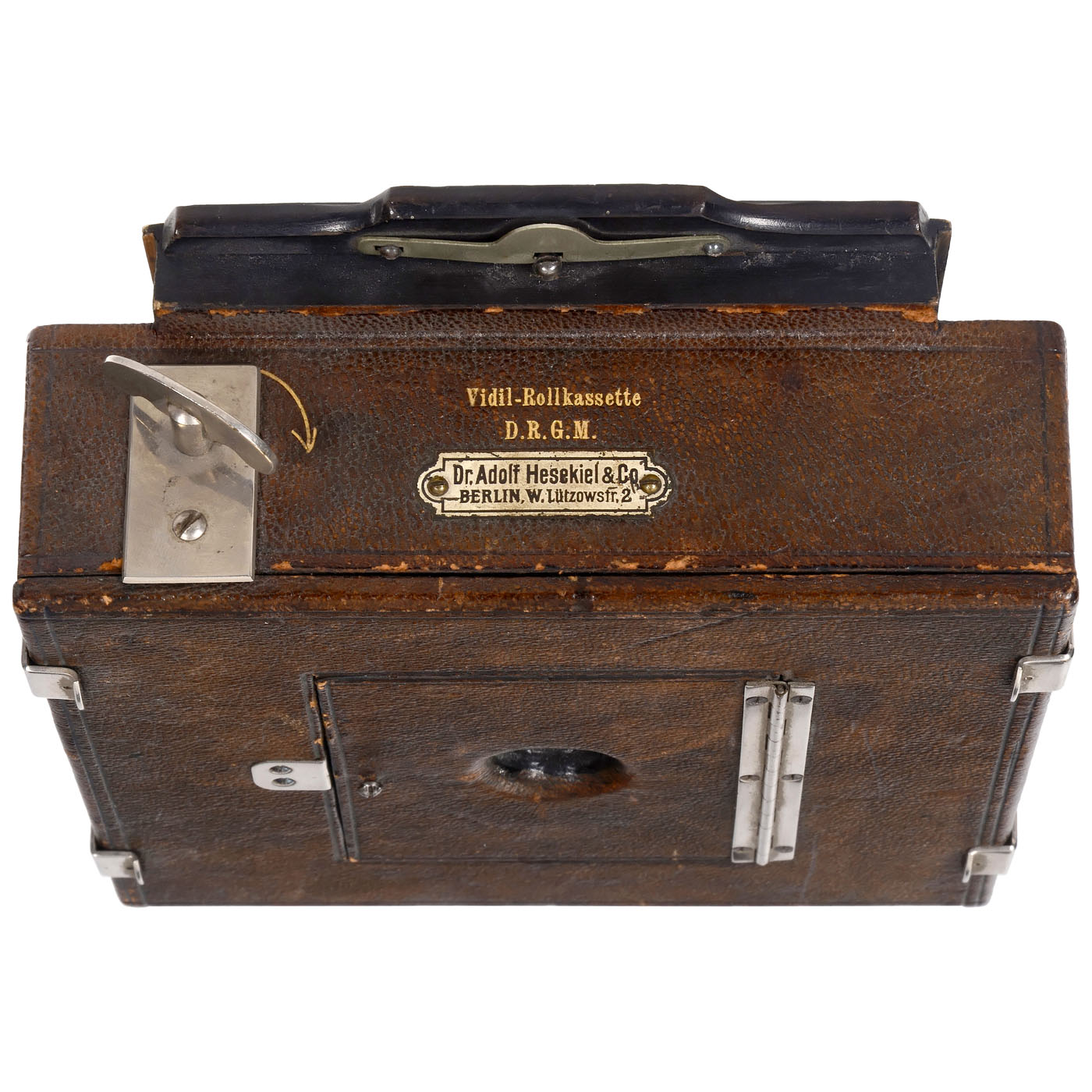

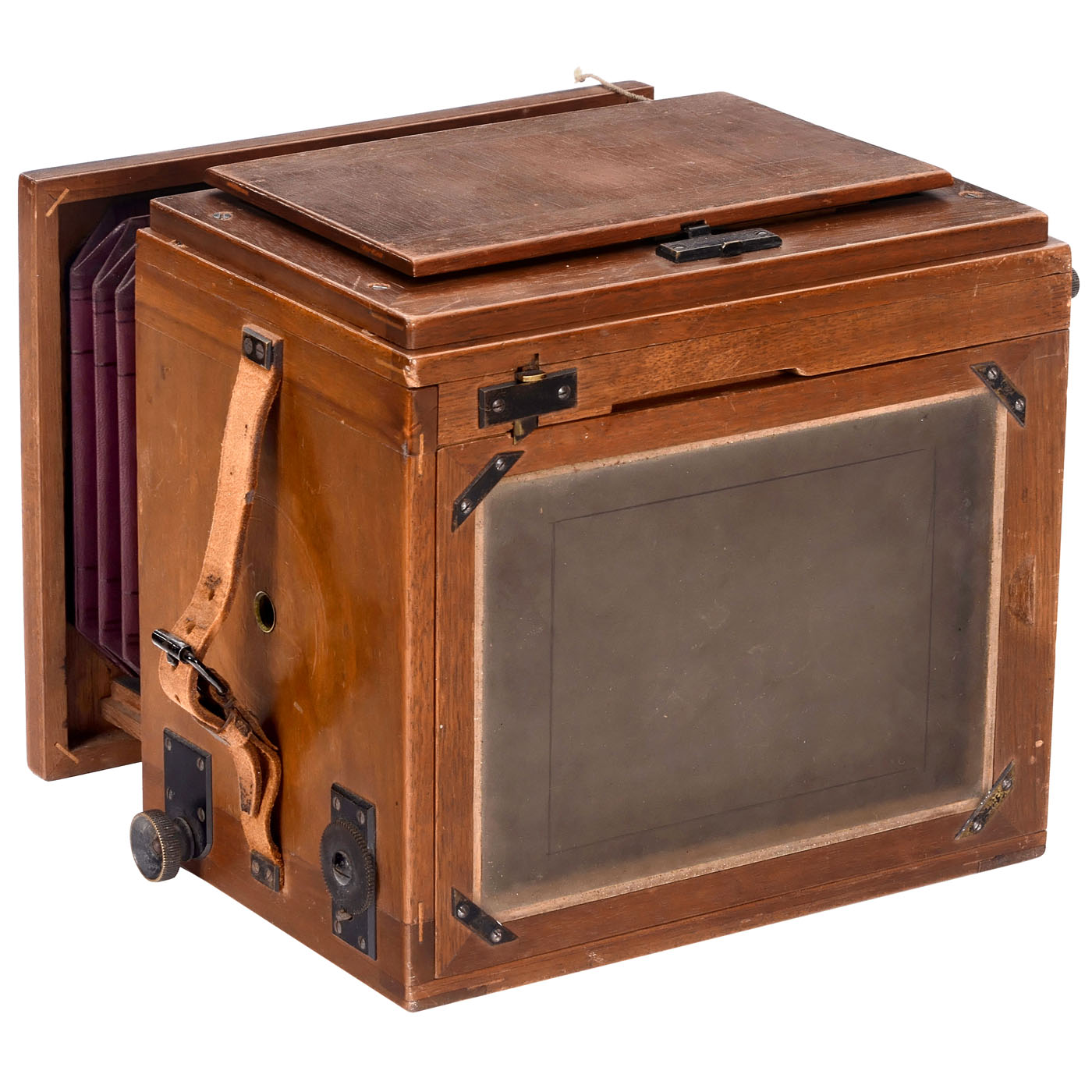

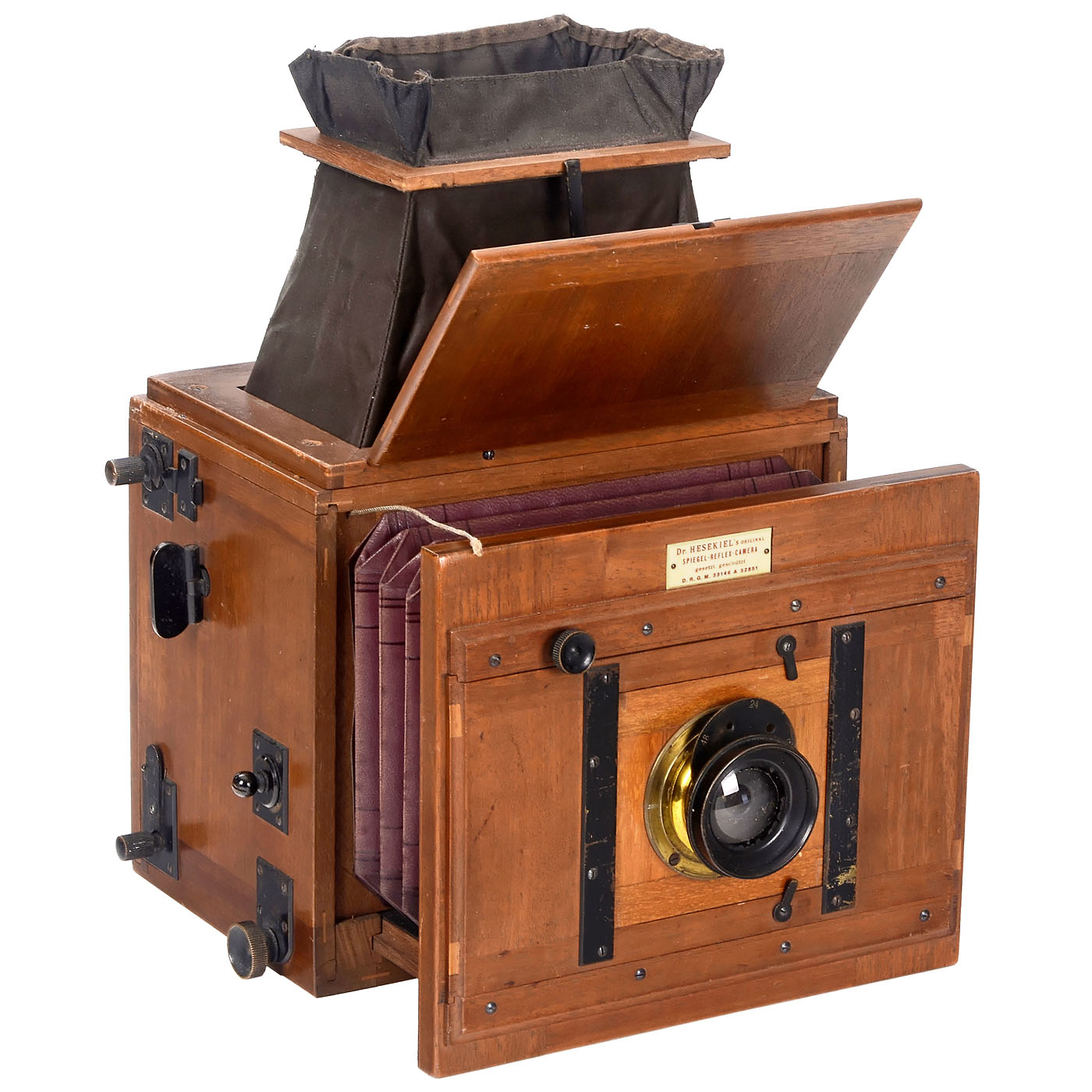

Dr. Adolf Hesekiel, Berlin. Deluxe tropical reflex camera No. 1087, version with label D.R.G.M. 33146 resp. 64466, 12 x 16.5 cm (landscape format) plates, tropical wood body, burgundy bellows, focal plane shutter, loosely-attached 9/150 mm wide-angle lens, added ground glass screen (cracked) and focusing screen back, shutter cloth dry, mirror engages only occasionally. - In addition: Vidil rollfilm cassette for a presumably 9 x 12 cm Hesekiel reflex camera, with label "Dr. Adolf Hesekiel & Co., Berlin, Lützowstr. 2". - Note: The shutter cloth is attached to the mirror and the shutter rewound by moving it. For a technical understanding of this unfamiliar shutter transport mechanism, see "Photographische Mitteilungen 1894", pp. 378-379 and p. 381: "Set up in such a way that you can easily and immediately see on the outside of the camera whether the focal plane shutter ... is opened far enough." (This is a thread protruding from the front of the camera, which disappears when it is wound up.) "The shutter is a focal plane shutter in front of the plate, without an adjustable slit." - Extremely rare early mirror reflex camera in externally good condition. - Literature: Michel Auer, "Cameras gestern und heute", pp. 176-178. - Abring, volume 1, p. 40.
