Wet-Plate Test Camera for Circular Images, c. 1870

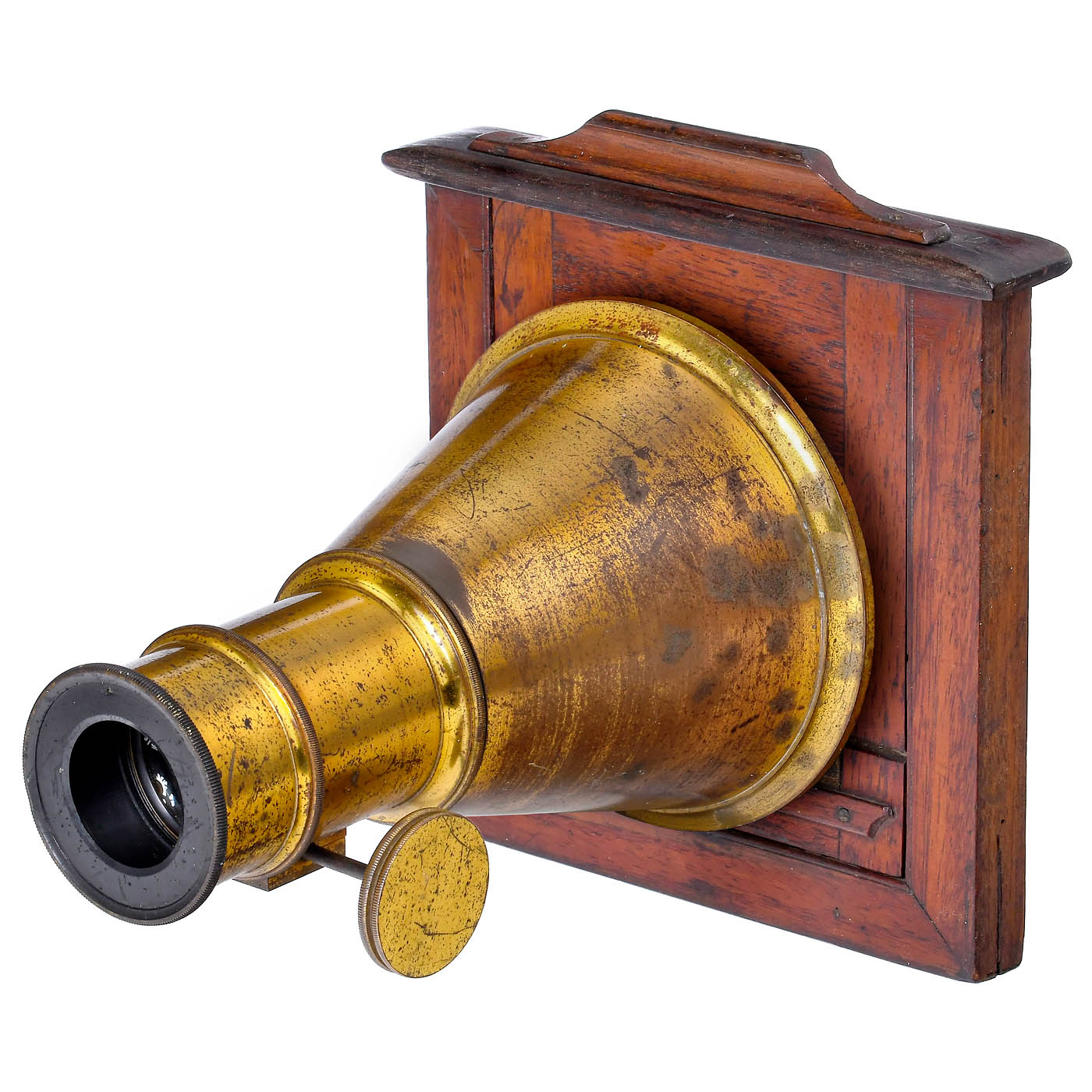

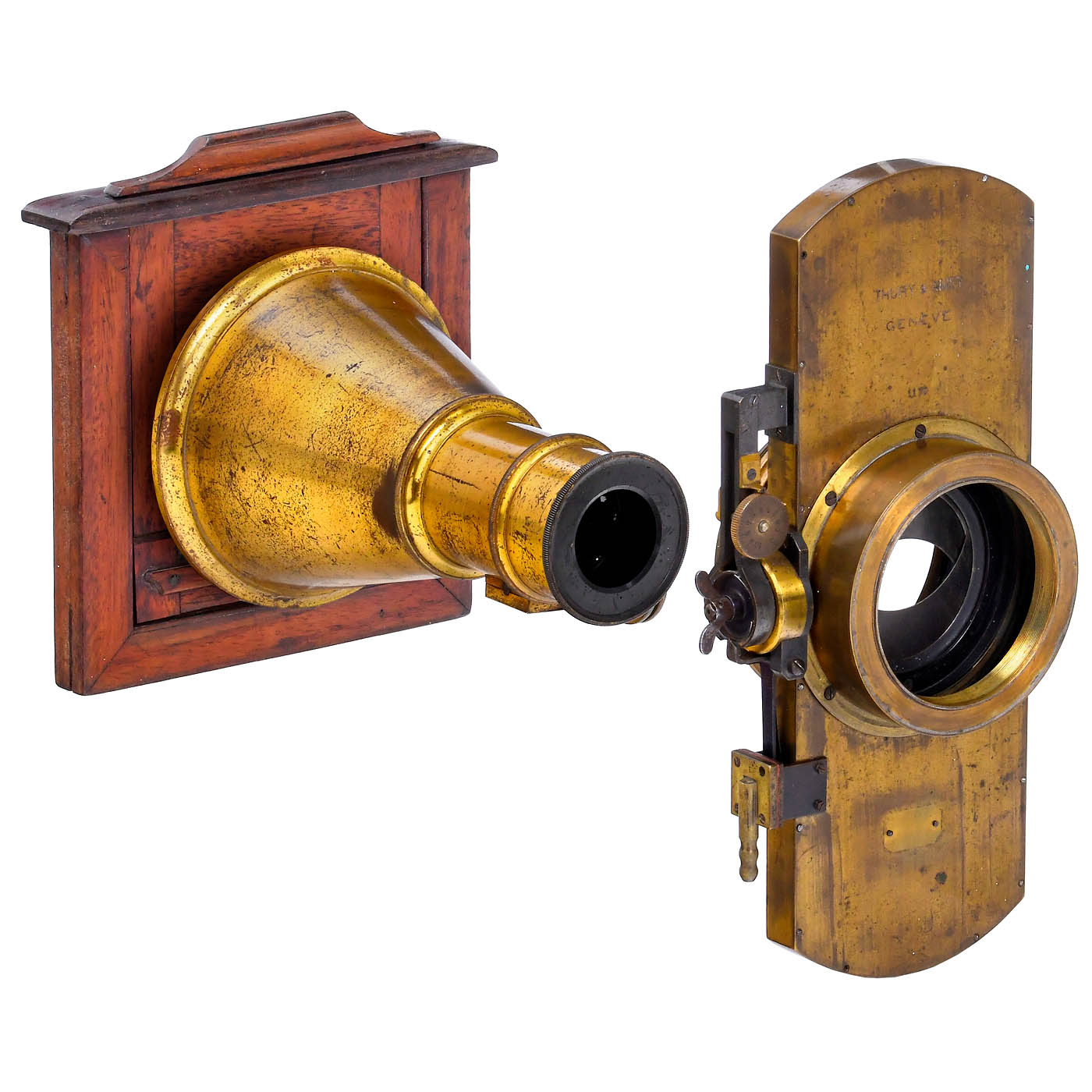

Probably of French or Swiss origin. The actual camera body is missing; it consisted of a thin connecting plate, approx. 10.5 mm thick, which was never recognized as part of a camera by later generations and therefore went missing. For reconstruction: This plate connected the conical brass lens mount to the wet plate studio cassette. The cassette holders were attached to the sides of this plate, and possibly, to balance the weight, a T-shaped piece was glued to the bottom of the plate as a base. A ??mounting ring of at least 124 mm diameter must have been attached to this plate. What remains: The cassette for 125 x 125 mm plates, with outer dimensions of 16.1 cm height and 16.0 cm width, and a 3 x 17.6 cm light-tight cover. The brass lens is unmarked (front lens with some cementing errors) and a Petzval type, approx. 3.4/14 cm, with an early, removable front aperture diaphragm (a set of diaphragms must have been supplied), but without a Waterhouse stop. A focusing range of 41 mm is possible (one screw is missing). At infinity, the image circle is 85 mm in diameter; at close range, it reaches exactly 114 mm (without the vignetting front diaphragm), which corresponds to the thread diameter on the lens mount. – In addition: A very early, large brass shutter by Thury & Amey, Geneva, serial no. 1173, for a lens diameter of approx. 54 mm; it is functional.
