Cloud Projector, c. 1890

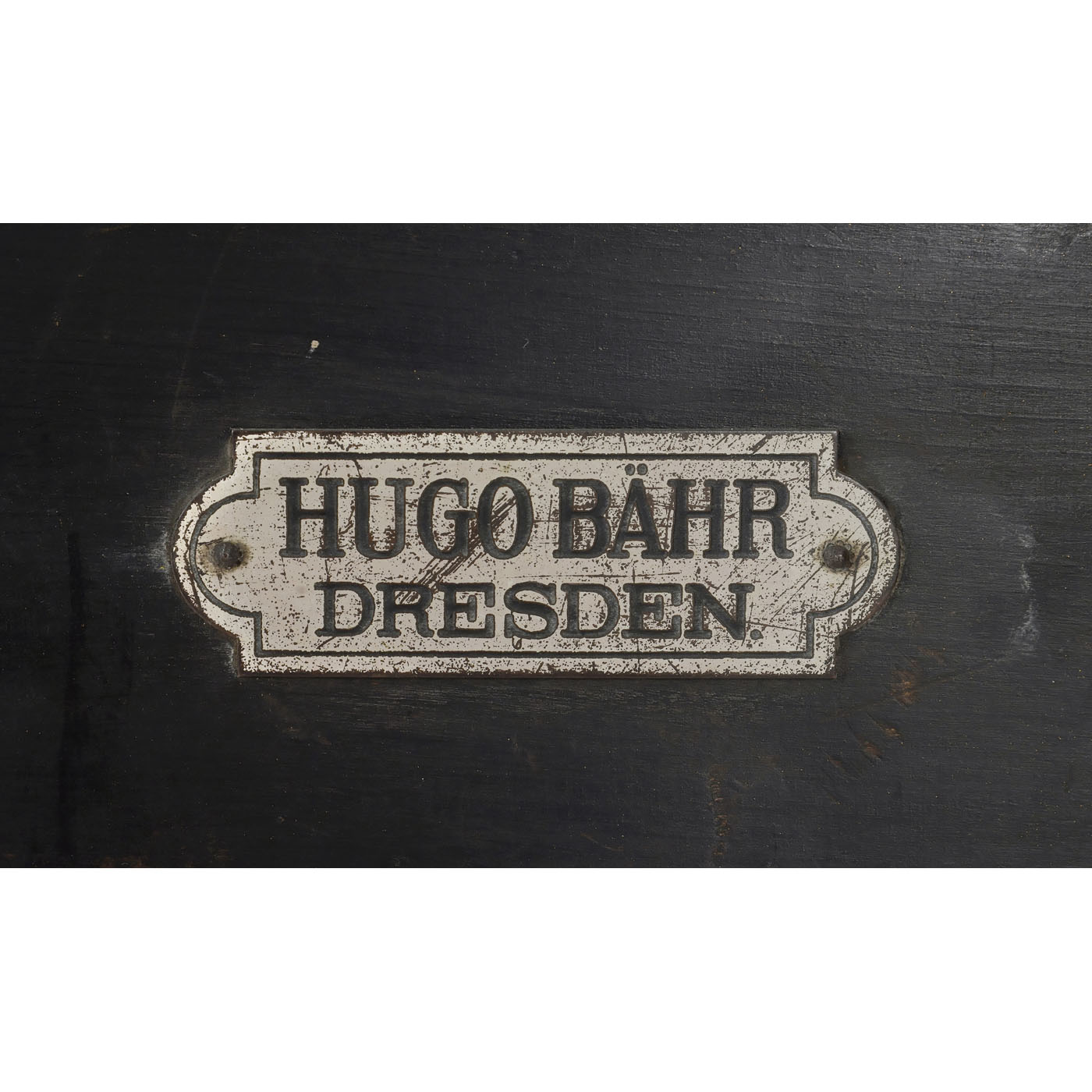

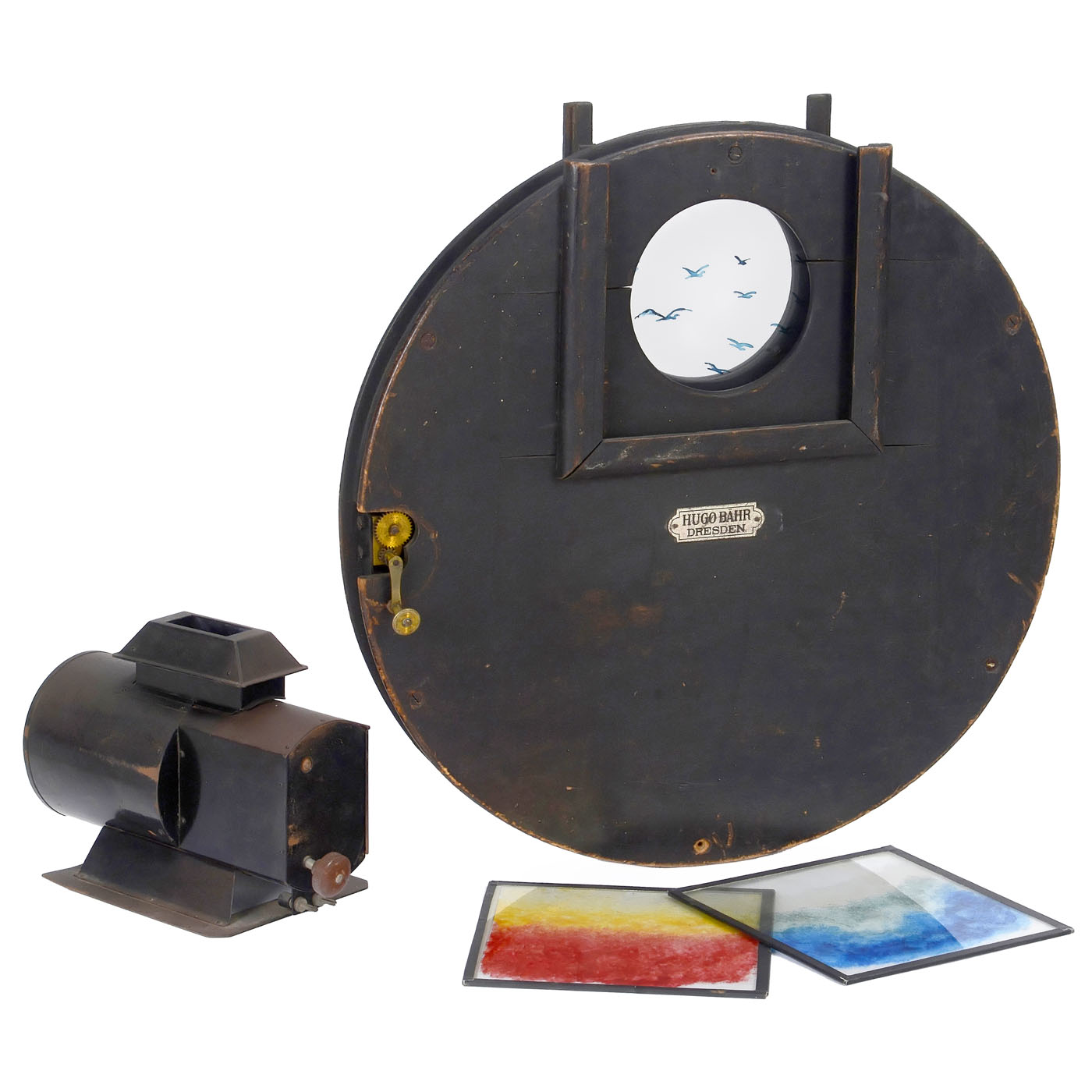

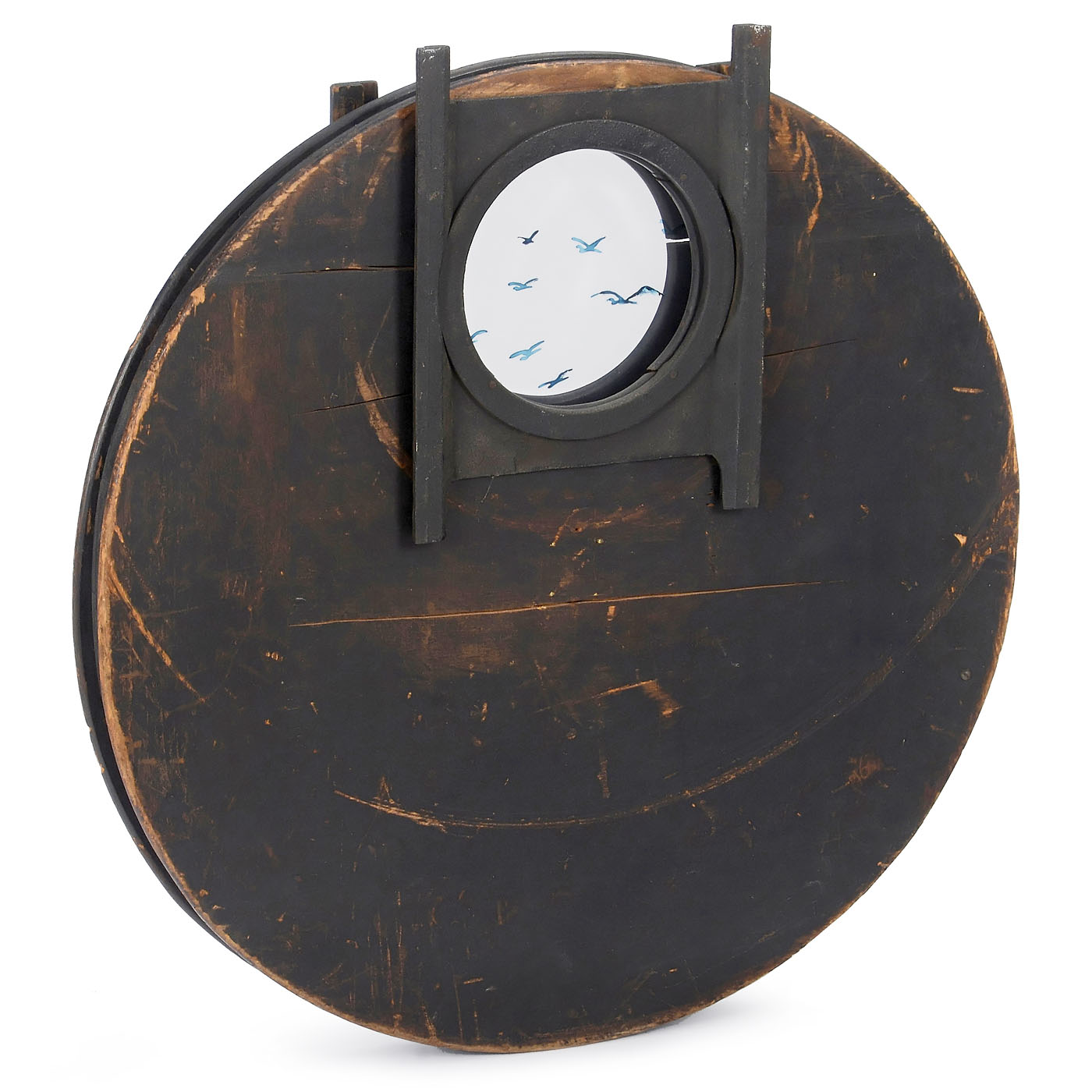

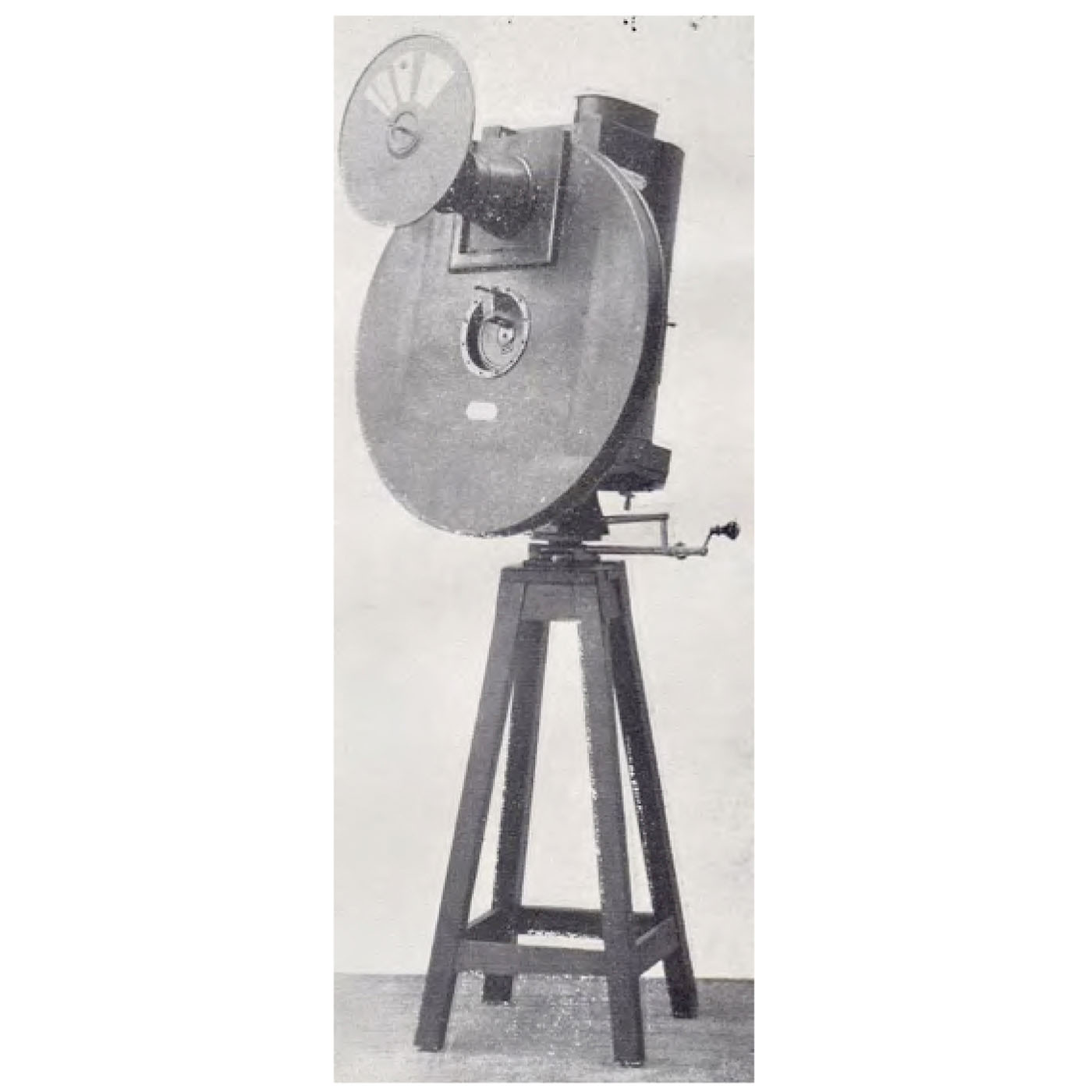

Hugo B?hr, Dresden. Round wooden housing, 56 cm in diameter, with an internal glass disc (replaced) that is rotated by a brass crank. Instead of clouds, the projector depicts birds in flight. The projection opening is 14 cm in diameter. It includes a holder for 21 x 21 cm filters, with two effect cloud filters for blue and reddish evening clouds. Two strips on the back allow it to be inserted into a missing simple stand (see reproduction), and a matching carbon arc lamp is included. – The reproduction is taken from: C.F. Baumann, "Bühnentechnik im Festspielhaus Bayreuth" (Stage Technology in the Bayreuth Festival Theater). Munich 1980. Quote: "Many reports and records of productions at the Bayreuth Festival Theater indicate the use of numerous cloud projections. From 1876 to 1906, Hugo B?hr supplied the theater with many devices, often custom-made. B?hr primarily manufactured cloud projectors with all accessories for Bayreuth. In addition, he offered stage effects such as torches, fire pits, and swords. He sold large glass or mica discs, some painted, with various motifs. The 1906 catalog listed: Drifting clouds, some with dawn or moonlight; drifting storm clouds; rising clouds; fire; smoke; wandering ghosts; and witches." – This is the first time a theatrical projection device has been included in our auction. It's a topic that has been largely unexplored in its versatility for magic lantern collectors.

布雷克拍品等级是为了方便竞买人判断拍卖品的成色而设置的。布雷克等级用1到6级来标注外观和功能的成色，(从非常好到非常差)。 在目录图册里用括号里的2个数字来表示，前一个数字表示外观成色的级别，后一个数字表示功能成色的级别。如(3/2)表示外观成色是3(满意的)，功能成色2(好)。 成色 定义参照下列标准： 1 - 非常好 (未使用过，没有使用痕迹) 2 - 好 (新，极少的使用痕迹) 3 - 满意的 (普通的使用痕迹) 4 - 及格的 (明显的使用痕迹，某个非主要部件是后配的) 5 - 有缺陷的 (极明显的使用痕迹, 某个主要部件是后配的，功能上有缺陷，需要修理) 6 - 非常差 (严重破损, 缺少重要部件)
