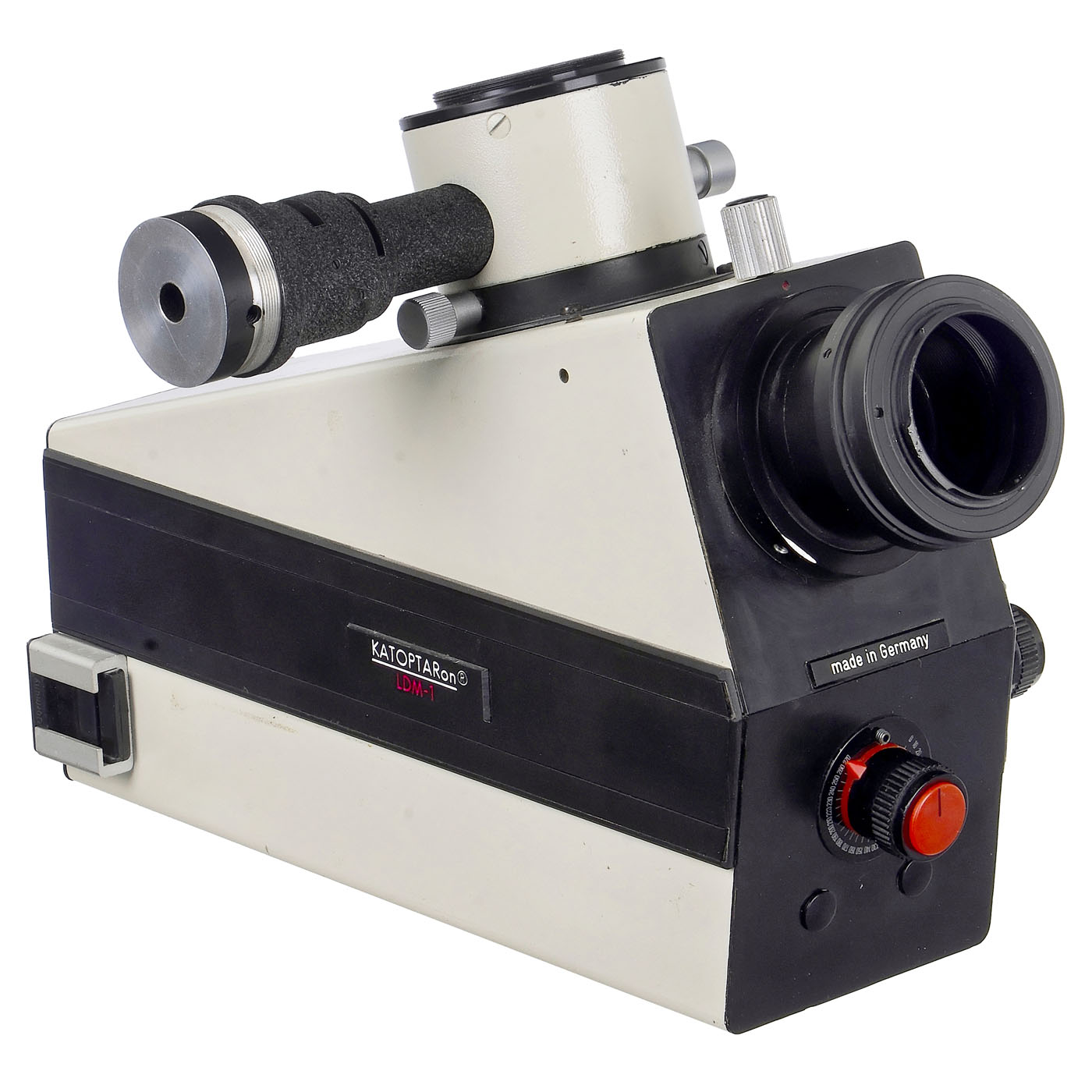

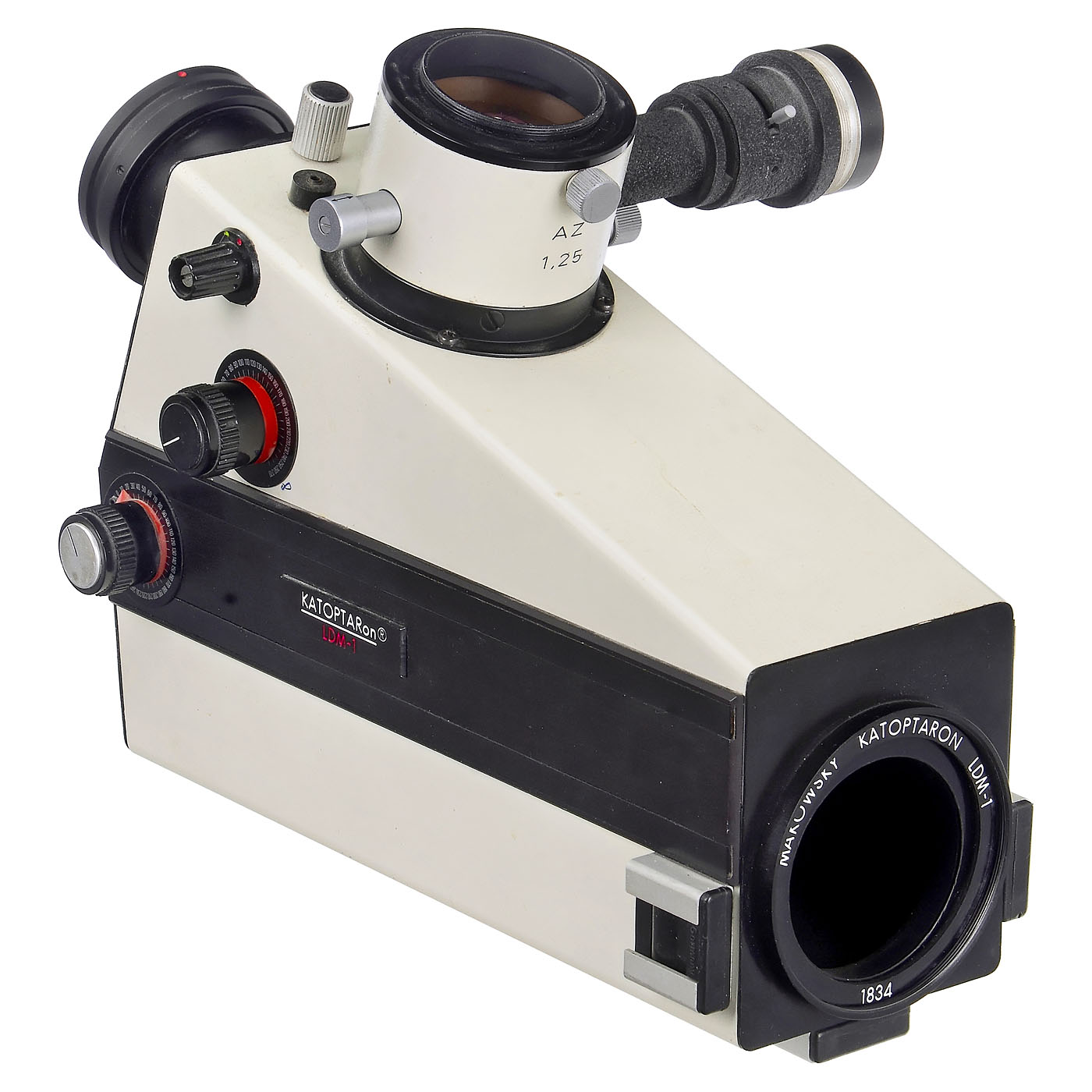

Makowsky KATOPTARon LDM-1(s), 1998 onwards

Dr. Helmut Makowsky, Opt. Ger?te, Troisdorf near Cologne. No. 1834, 11/800 mm mirror lens with iris diaphragm, based on his Katoptaron "Schiefspiegler" lens design consisting of two quartz ZERODUR Schott glasses, UV-IR transmission (approx. 200 nm to 4000 nm), from infinity to approx. 3 meters for very high magnifications, knob on the back for fine mirror adjustment depending on the scale, higher magnifications possible with screw-on achromatic lenses, camera connection via T2 adapter, and an additional camera connection for a second camera, where a pivoting beam splitter with illumination attachment, filter insert, and iris diaphragm can be used to project illumination onto the macro object. Very rare to find, as it cost $8,500 new at the time.
