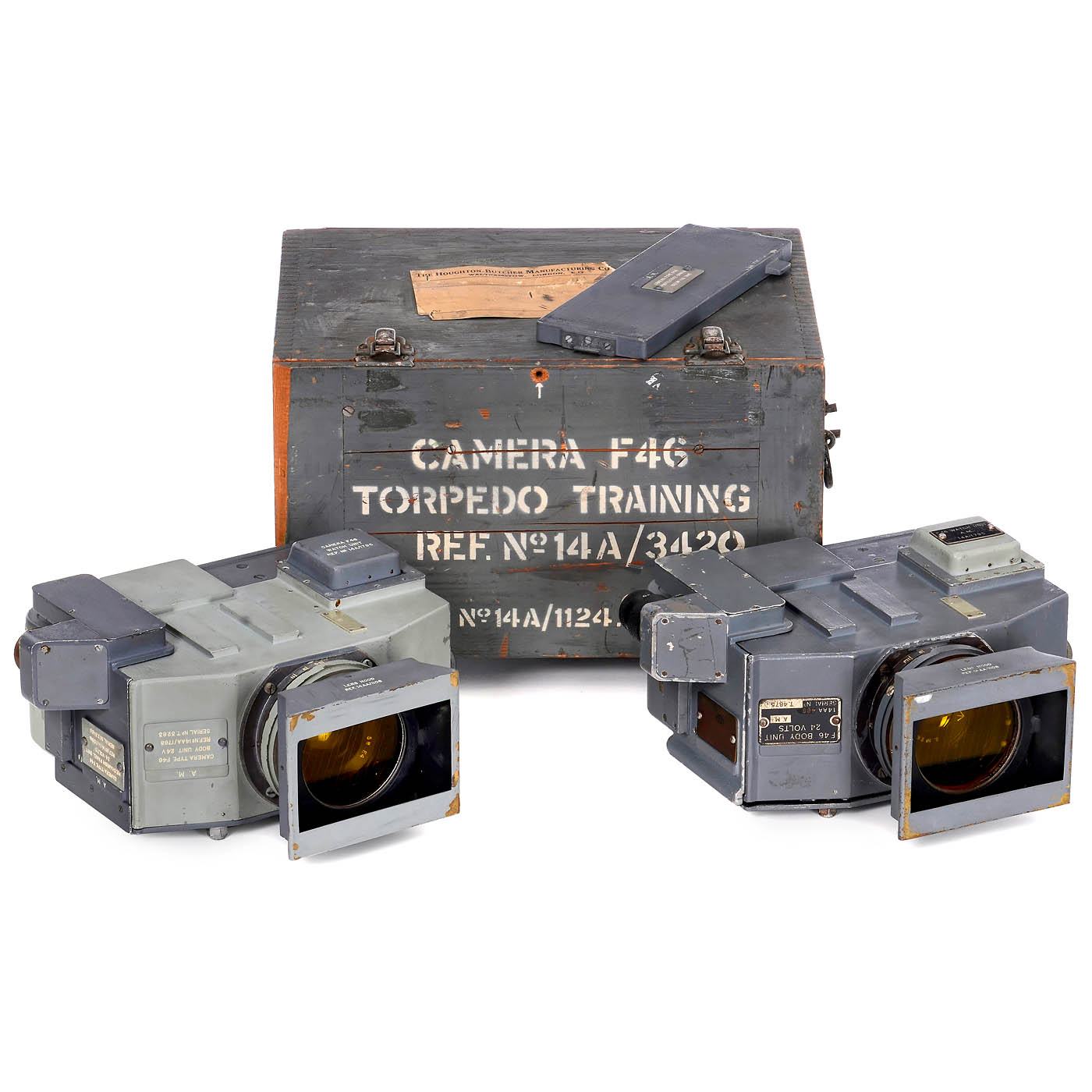

2 x Torpedo Training Camera Type F46, c. 1942

A.M., England. Panoramic motor camera for 120 film in interchangeable cassettes for the 57 x 185 mm format with motor coupling, for 24V connection, both shutters mechanically operated by hand, both in good condition. Electrical components untested. 1) Early version Body Unit Ref. No. 14AA/1768, housing no. T.3283, with wide-angle 4/5 in. no. 171776, stop-down to f/11, correctly illuminates the format even at wide aperture, heated yellow filter, mechanism panel unit with 6-blade shutter no. T3183 and electric film notice, magazine unit no. T.5190. With original transport case, addressed to No. 14 Maintenance Unit, Carlisle. – And: 2) Later version, almost identical except for a different 4/5 inch lens, engraved "REF. No. 14A/3439 S. No. 26977", with strong vignetting (no replacement available due to wartime conditions), Body Unit No. T.48754 without film notice. – Note: On the high seas, these cameras allow the bubble trails of the expensive compressed-air-powered torpedoes to be easily traced due to their sharply curved paths, a wide-angle panorama is required for documentation and evaluation. This camera type was highly sought-after because of its unique panoramic rollfilm magazine. Here, the original versions are preserved without conversion for the civilian market.
